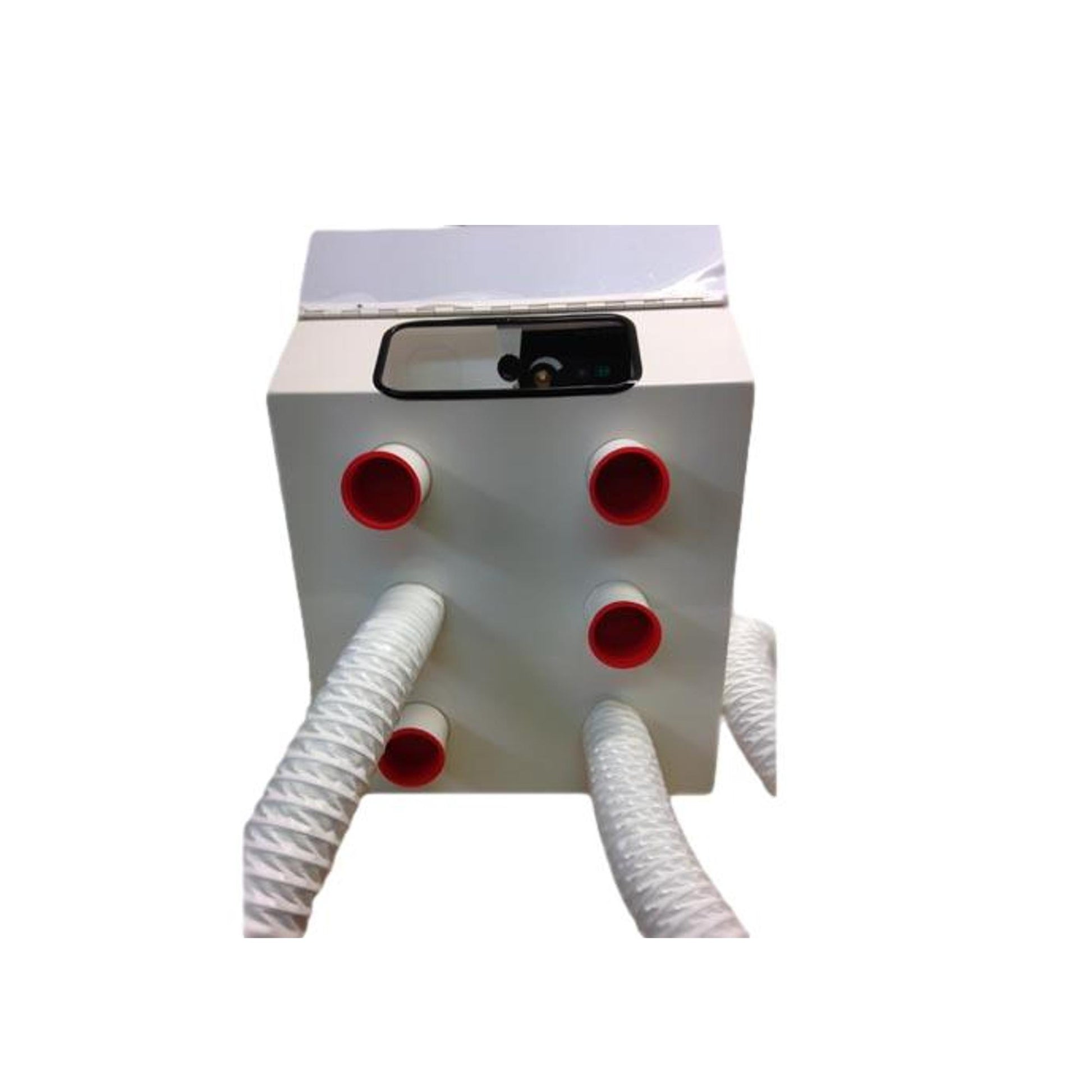

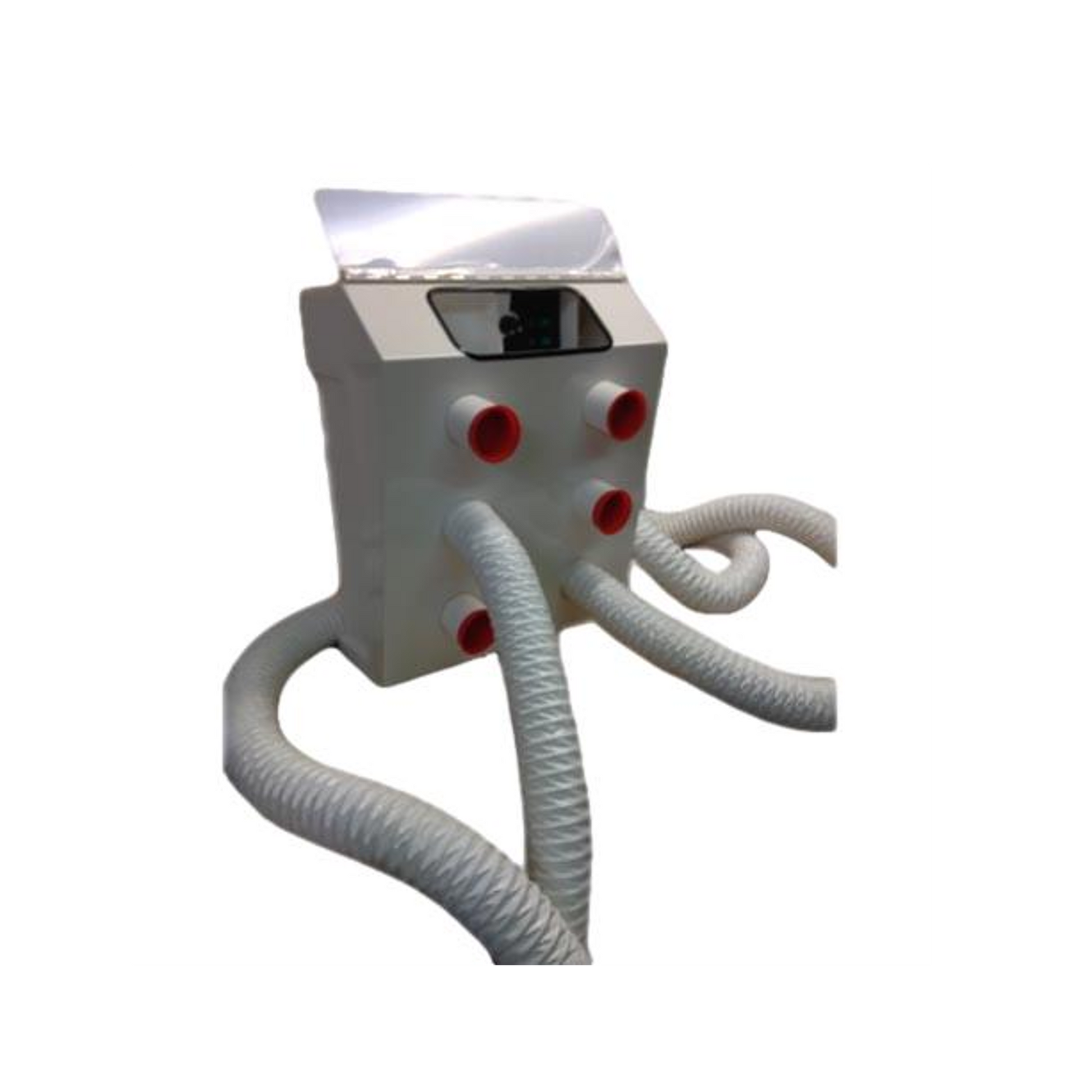

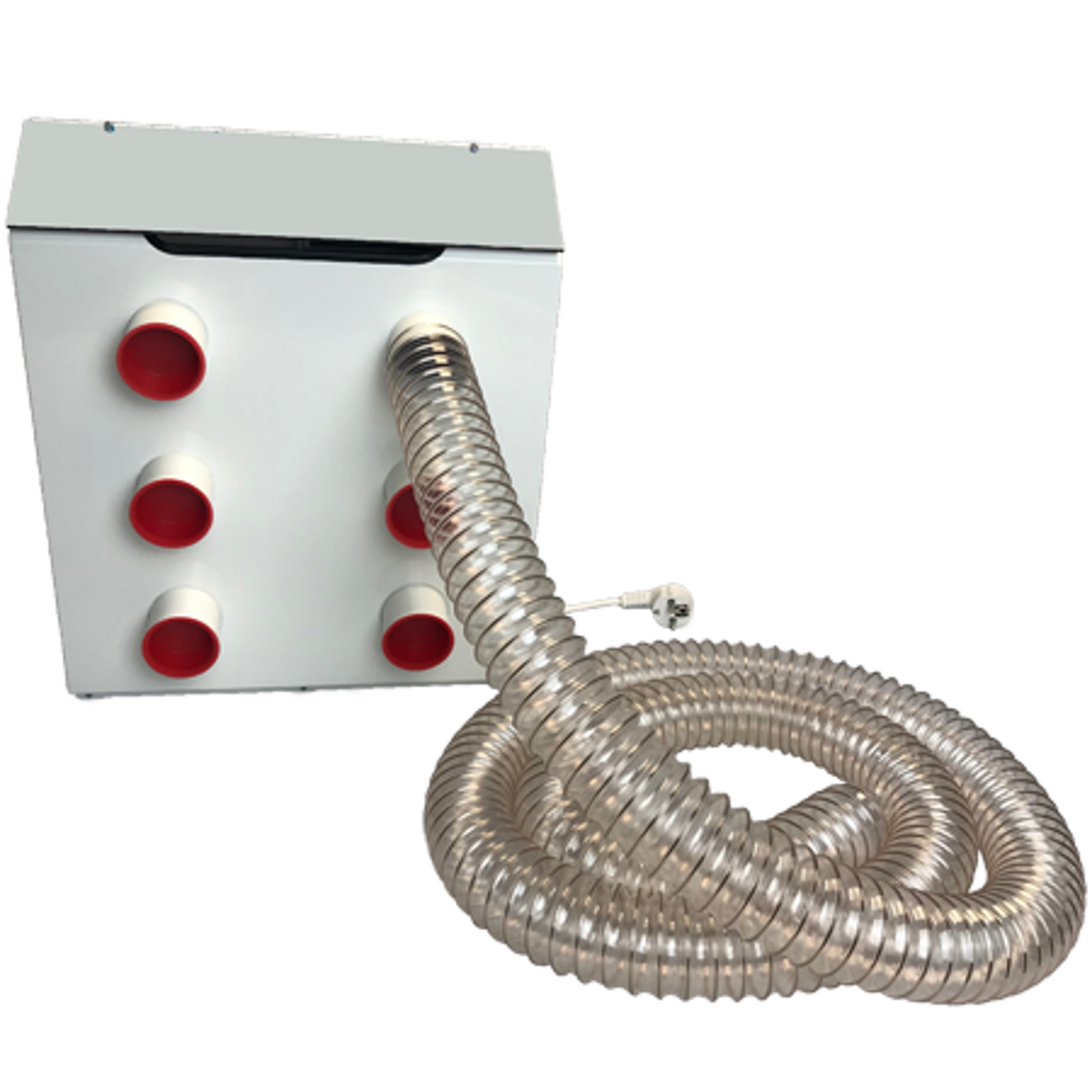

Multi-station suction box - MY4P6S

General characteristics:
• Used to treat solvents, welding fumes, small dust particles, application of glues
• Variable flow, to be positioned under the work surface
• Allows the connection of 6 capture sources
• Supplied with 1 polyurethane tube of 3 ml, Ø50 mm as well as 5 sealing caps
• Supplied without filter

Use :
- in recycling: Activated carbon filtration or Dust filter
- in external discharge (filter for external discharge + Ø 125mm evacuation duct)

*Possibility of using protective pre-filters to increase the longevity of the main filtration system

Technical characteristics:
• Variable flow rate: from 50 to 450 m3/h
• Power: 80 W
• Dimensions: 350 x 430 x 200 mm
• Weight: 5.7 kg
• Power supply: 230 V / 50 Hz
• Maintenance: periodic filter change
• Rear outlet: yes, external exhaust, diameter 125 mm
